Telecor SI-60 Amplifier Specifications
| Output Power |
· 60W RMS |
| Frequency Response |
· 40-15,000 Hz ± 1 dB) |
| Total Harmonic Distortion |
· 0.05% @ 1kHz |
| Input Sensitivity (switchable) |
· 100mV / 1000mV |
Input Impedance
|
· 10 kΩ – balanced |
| Outputs (balanced) |
· 4 Ω, 8 Ω, 25 V and 70 V |
| Controls |
· 1 input gain control
· 1 input sensitivity switch
· 1 low cut switch
· 1 On/Off power switch |
| Indicators |
· Power On/Off
· Output level (LED VU meter)
· High Temperature (LED)
· Current Overload (LED) |
| Connectors |
· Inputs: screw terminal strips
· Outputs: screw terminal strips
· AC Power: SJT 3 Cond, U-Ground |
| Power Input |
· 120VAC, 60Hz |
| Power Consumption |
· Idle: 15W
· Full Load: 205W |
| Dimensions |
· 3.5”H x 19”W x 12.12”D |
| Weight |
· 19 lbs |
Description

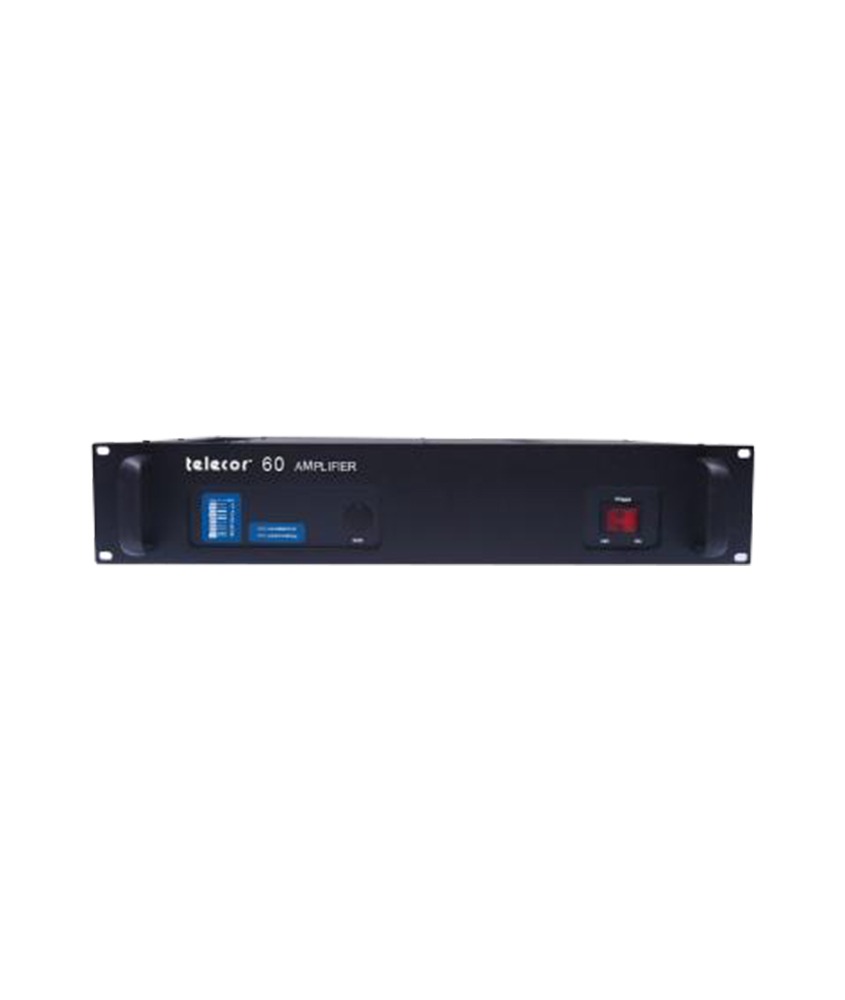

Telecor SI-60 Amplifier
The TELECOR model SI-60 Amplifier is designed for dependable continuous operation. The amplifier delivers up to 60 watts of power at less than 0.5% total harmonic distortion.
Elaborate protection circuitry is implemented in the design to ensure maximum protection from damage caused by overloads and shorted line conditions. Current limiting protection activates whenever the amplifier is overloaded, either by overdriving or by connection to an excessive load or by a short circuit, limiting current to the speaker load. An LED indicator illuminates during the presence of an overload condition.
A thermal sensor detects excessive heat build up and automatically shuts the SI-60 amplifier down, preventing any damage to internal components. The heat sink temperature is monitored and a warning LED illuminates in the event of an unusual temperature rise.
A calibrated LED level meter indicates the amount of signal present in 3 dB steps, from -30 dB to 0 dB steps, from -30 dB to 0 dB. The “CLIP” LED illuminates when the output stage is about to clip, either from an overdriven input or an overloaded output.
Rear panel input connections provide for the versatility of connecting either a balanced input or single ended input signal sources to the amplifier. A sensitivity switch is also provided, allowing for the selection of 0 dBv (1V) or -20 dBv (100mV) input signal levels. Barrier strips are used for input/output connections, providing more secure wiring and better current-handling capabilities than typical phone jacks or binding posts.
Telecor SI-60 amplifiers are provided with recessed input attenuators with screwdriver adjustable controls to discourage casual tampering. Plastic caps are supplied for added security. Output configurations are available for 4 or 8 ohm speakers, as well as 25 or 70 volt constant voltage lines.
The Telecor SI-60 amplifier is the replacement for the previous PN# TEL-60 amplifier.
