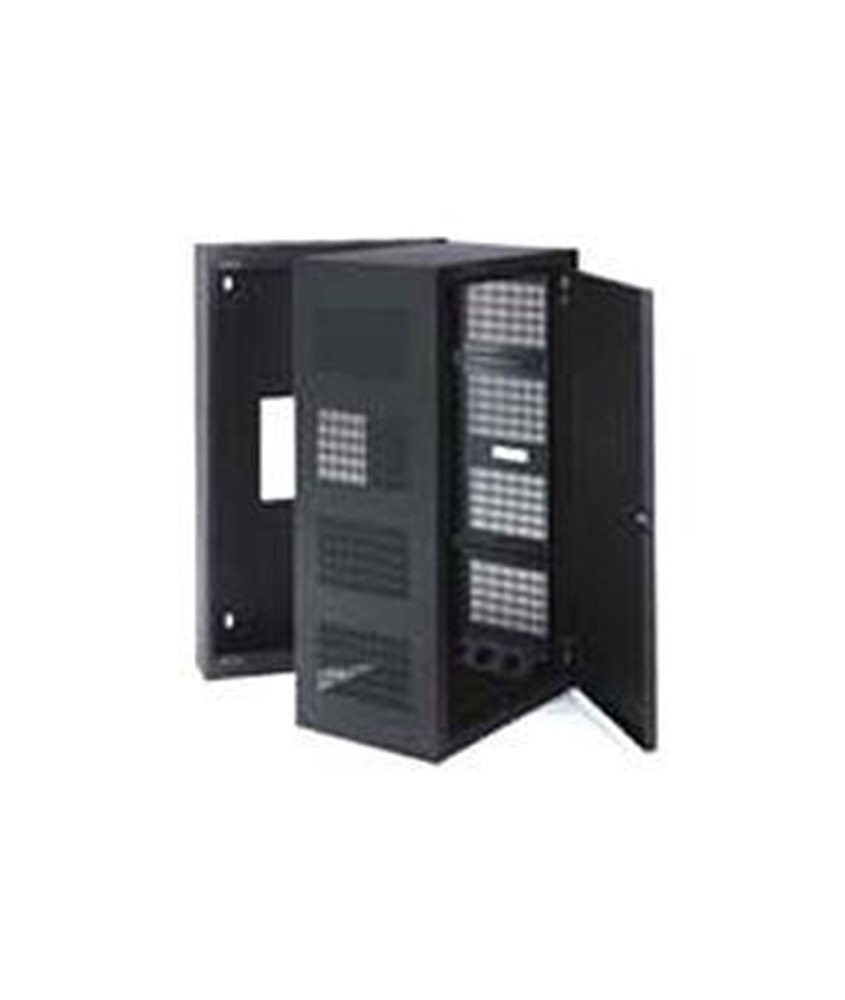

Lowell LWR-Series Sectional Wall Cabinet – 19”D

Lowell’s UL Listed (Standard 1678) LWR-Series sectional wall cabinet features full field flexibility, mounting options, and loading strength for swing-out access to equipment that is wall mounted. Optional solid steel, fully vented steel, or Plexiglas front door is available separately.

Field-friendly design features a universal backbox that mounts the 14.18″D mounting section with right or left hinging. The backbox is 4.69″D and features 16″ mounting centers, top and bottom removable knockout panels, a 10″ x 10″ opening for mounting over electrical pull boxes, and embossed dimples on the backplane for installation of board-mounted accessories. The mounting section attaches to the backbox from the inside using two heavy duty, spring-loaded L-pins that are self-seating and positive locking upon closure for fast and secure installation with no visible hinging or hardware.

The stability of Lowell’s L-pin design combined with the section’s fully gusseted corners and triple-formed side-to-bottom and side-to-top wrapped design achieve strength equivalent to 3/16″ thick steel for dependable load bearing support.

The LWR-Series is available in sizes from 7RU to 35RU with load capacities from 125lbs to 300 lbs. Cabinets are finished in Lowell’s black wrinkle powder epoxy.

Lowell’s LWR-Series Racks are Made in U.S.A. with 100% U.S. Steel.
