Lowell LT-Series Speaker Specifications
Baffle |
|
Type |
· Lay-In Ceiling (ceiling tile replacement) |
Finish |
· White, semi-gloss epoxy |
Material |
· 22 gauge CRS, perforated |
Size |
· 12” x 24” x 4” |
Cone Speaker |
|
Diameter |
· 8” (203 mm) |
Power Rating |
· 12 watts RMS |
Frequency Range |
· 55 Hz to 18,000 Hz |
Magnet |
· 5 oz |
Axial Sensitivity |
· 93dB avg. @ 1watt/1meter |
Transformer |
|
Type |
· 25v, 70v, or 25v/70v Combo |
Transformer Taps |
· .25, .5, 1, 2, 4 Watts or .5, 1, 2, 4 Watts
(Model Dependent) |
Terminations |
· 4” Color-Coded Leads |
Standard Models |
|
LT805-72 |
· 12W, w/o backbox |
LT805-72BB |
· 12W, w/backbox |
Optional Models |
|
LT810-72 |
· 15W, w/o backbox |
LT810-72BB |
· 15W, w/backbox |
LT830-870 |
· 20W, w/o backbox, coaxial, 70V only |
Description

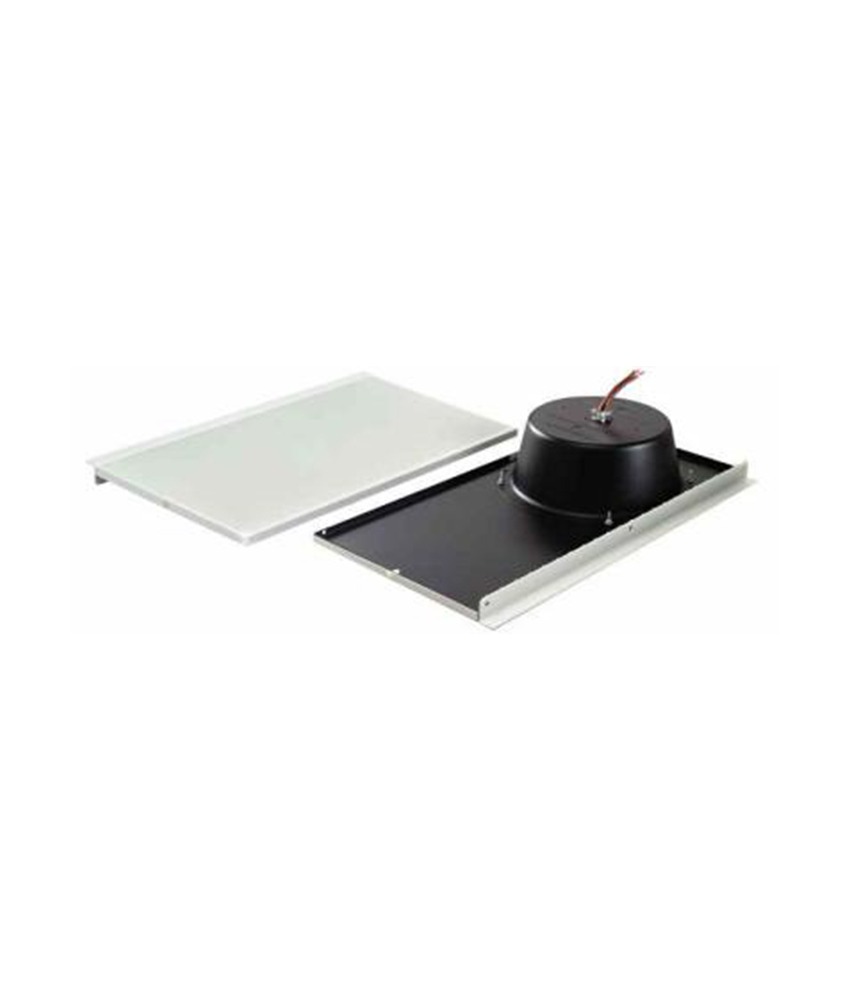

Lowell LT-Series Ceiling Speakers
LT Series speaker assemblies provide quality performance, unobtrusive appearance, and easy installation in suspended ceiling applications. Systems include a factory-wired driver mounted to a fine perforated grille with wired speaker or speaker/transformer and factory-mounted 4″D protective backbox. They are shipped ready to install and require no speaker cut-outs in the tile or time consuming assembly.
1′ x 2′ Systems are supported by the T-Bar grid and include an integral T-Bar support (Patented) for fast installation when replacing half of a 2′ x 2′ tile or one quarter of a 2′ x 4′ tile. Ready-to-install systems include a factory wired speaker or speaker/ transformer mounted to a 1′ x 2′ sub-plate with a fine-perforated grille, integral T-Bar, and 8XD4-style protective backbox. For installation convenience speaker leads exit the backbox through a metal clamp.
The dual cone Model 805 driver has a power rating of 12 watts RMS and employs a 5 oz. ceramic magnet. The cone is molded of a high fibre content material to provide a smooth, extended frequency response and a clean, natural sound. To facilitate a variety of distributed applications each assembly includes a wired 25V or 70V transformer with .25, .5, 1, 2, and 4 watt taps; or a dual voltage 25/70V transformer with .5, 1, 2, and 4 watt taps. Optional LT-Series system drivers include Lowell’s 8″ coaxial Model CT830 (20W), and 8″ dual-cone Model 810 (15W).
