Quam C10-Series Ceiling Speaker Specifications
| Power Handling |
· 16 watts RMS (nominal) measured per EIA Standard RS-426A |
| Sensitivity |
· 97dB SPL avg, measured 1W/1M |
| Calculated Output |
· 104dB SPL, 4W/1M |
| Impedance |
· 8 ohms (nominal) |
| Freq. Response |
· 60Hz-16kHz – EIA 462A Standard |
| Dispersion Angle |
· 90° @ 2kHz octave (-6dB) |
| Magnet Weight |
· 10oz. nominal |
| Magnet Material |
· BeFe ceramic |
| Transformer Type |
· 25v, 70v, or 25/70v |
| Transformer Taps |
· 1/4W, 1/2W, 1W, 2W, 4W or
· 5/8W, 1-1/4W, 2-1/2W, 5W (model dependent) |
| Baffle Type |
· Round or Square Models available |
| Baffle Construction |
· Steel, Aluminum (round only), Plastic (round only) |
| Volume Control |
· Optional Knob-style
· Optional Recessed |
| Country of Manufacture |
· U.S.A. |
Description

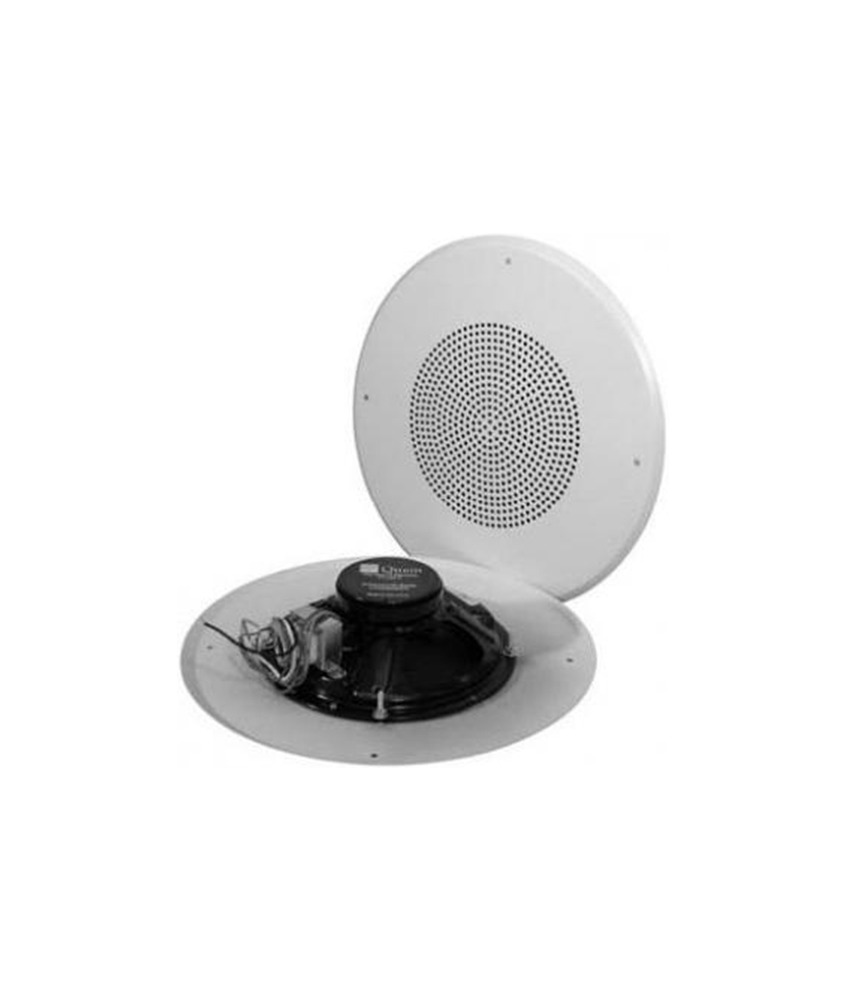

Quam C10 Series Ceiling Speaker
The Quam C10 Series Ceiling Speaker is an American-Made loudspeaker assembly with an 8” frame, 16W dual-cone loudspeaker, baffle, transformer and optional volume control. This ceiling-mounted loudspeaker meets the needs of a broad range of interior paging or commercial background music reproduction systems.
A hard fiber “whizzer” cone provides extended high-frequency response with fine clarity, while the molded main cone provides excellent mid and low range frequency response.
The speaker frame is stamped steel with a black baked hybrid epoxy finish. The frame includes a factory-mounted transformer with color-coded tinned wires.
The speaker baffle of the Quam C10 Series is available in round and square models constructed of steel with a white baked hybrid epoxy finish. Quam also offers models with round aluminum or plastic baffles.
