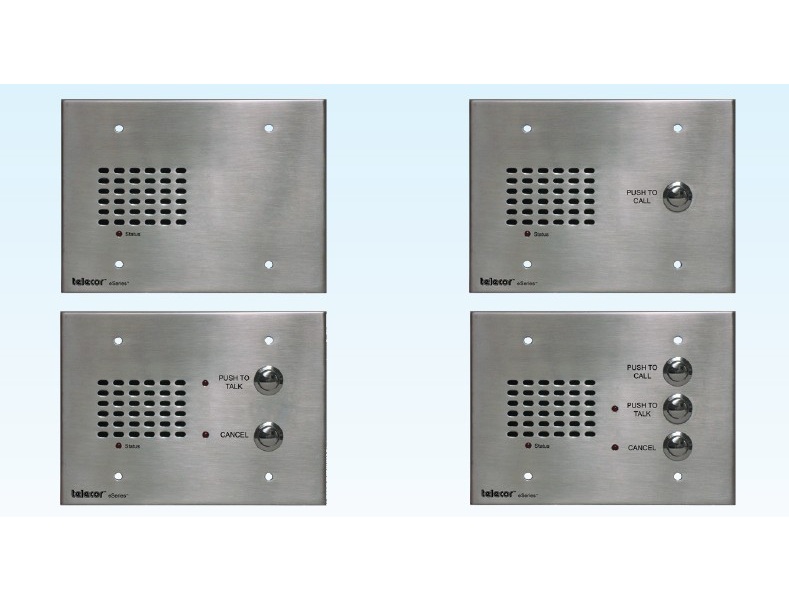

Telecor eStations are network-based wall intercom stations used to establish communication between specific areas of a facility. The eStations are available
in zero, one, two, and three-button models. The Telecor eSeries uses Power-over-Ethernet technology, Just Plug It In! design, and a decentralized network structure to ensure easy wiring and simplified network planning. The use of Power-over- Ethernet technology allows the eStations to be plugged into a PoE network switch to supply both power and data.
The simplicity of Telecor's Just Plug It In! design means eStations do not require any network configuration or administration, eliminating IP address and DHCP server requirements. The decentralized network structure means no head end, central server or controller equipment is required. Once plugged into the LAN, the eStations can place calls to all eConsoles, or to all Two and Three Button eStations if there are no eConsoles present.
Speech is transmitted through the eStations in crystal-clear HD Audio. Audio is transmitted in the frequency range from 50 Hz to 7 kHz while using only 128 kbps of bandwidth during a call. Audio between stations and consoles is non-blocking, allowing a virtually unlimited number of audio channels across the LAN and reducing or eliminating busy signals.
Telecor’s eStations can further be configured to suit the building application. One and Two Button eStations are equipped with a Push to Call button and can have their call-in destinations configured. Two and Three Button eStations also have the unique ability to be configured to receive call-ins acting like a Master Console. In addition, Zero, One, and Three Button eStations models have a dry contact output, allowing the network of eStations to be customized to suit many applications. The output can be configured to various modes which specifies when and how they are activated.
The wall mounted eStations are constructed with rugged 11 gauge stainless steel faceplates to withstand physical damage and everyday wear and tear. The buttons are tamper-proof and the overall assembly is designed to be vandal-proof. A G3 weather-seal gasket is available to weatherproof the eStations.
