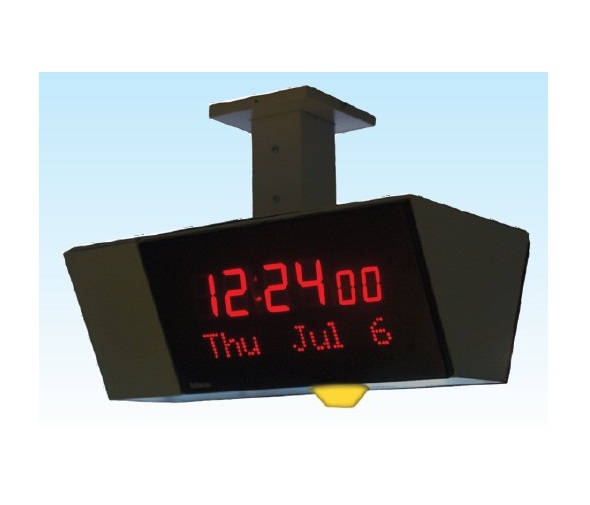

The e2446-LD provides a combination Dual Sided Message Display/Calendar Clock/Speaker/Strobe in one assembly that resides on an eSeries Network. Designed for surface installation on walls or ceilings, it is ideal for applications in corridors or large open architectural areas.
The built-in LED strobe on the e2446-LD will flash for the duration of an announcement being broadcast over the speaker and/or a message being displayed on the clock display. The strobe quickly draws attention to the announcement in progress, making this unit ideal for use in environments where high ambient noise makes announcements difficult to hear.
The LED Strobe can be configured to illuminate in white, red, green, blue, or amber with various flash patterns. Patterns can be set to activate based on defined conditions. For example, an Emergency Announcement can be assigned one flash pattern and color, while a routine announcement can be assigned another pattern with a different color.
The e2446-LD simultaneously displays plain text emergency or routine messages. When not displaying a message, it displays the current time and date. Hours and minutes are displayed with large 2.25” digits. Seconds are slightly smaller for easy distinction. The date is displayed in plain text by a 10-character, dot matrix display showing the day of the week, followed by the month and date.
The e2446-LD uses Power-over-Ethernet technology, Just Plug It In!™ design, and a decentralized network structure to ensure easy wiring and simplified network planning. The use of Power-over-Ethernet technology allows the e2446-LD to be plugged into a PoE+ network switch to supply both power and data. The simplicity of Telecor's Just Plug It In!™ design means the e2446-LD does not require any network configuration or administration, eliminating IP address and DHCP server requirements. The decentralized network structure means no head end, central server or controller equipment is required to operate the network. Once plugged into the LAN with a valid time signal, the e2446-LD is immediately functional.
