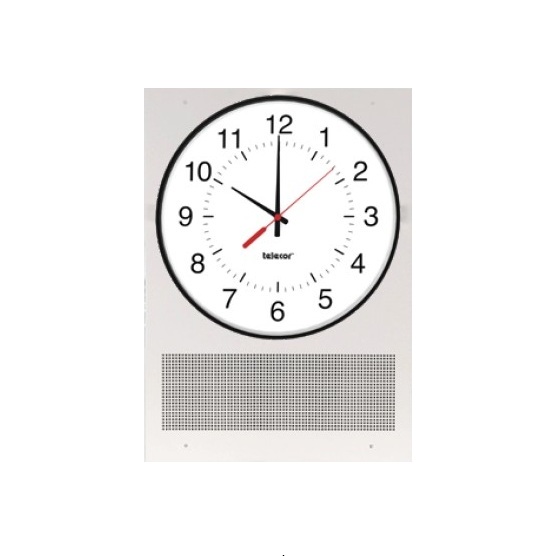

Telecor’s e2445-eACLK provides an architectural solution for a combination network-based speaker and analog clock assembly. The combination speaker and clock solution reduces fixture and labor costs while providing an attractive architectural appearance.
The baffle can accommodate a variety of 12”analog clock models by Telecor, Sapling & similar. The overall dimensions of the baffle are 20 3/16“ H x 14 ½” W. The baffle is finished in white powder epoxy, which provides an attractive and durable finish.
The Telecor e2445-eACLK uses Power-over-Ethernet technology, Just Plug It In!™ design, and a decentralized network structure to ensure easy wiring and simplified network planning. The use of Power-over-Ethernet technology allows the e2445-eACLK to be plugged into a PoE network switch to supply both power and data.
The simplicity of Telecor's Just Plug It In!™ design means the e2445-eACLK does not require any network configuration or administration, eliminating IP address and DHCP server requirements. The decentralized network structure means no head end, central server or controller equipment is required to operate the network. Once plugged into the LAN, the e2445-eACLK is immediately functional. It can establish two-way voice from eConsoles as well as receive pages and audio source distributions from devices in the network.
The e2445-eACLK is fully supervised and monitored for network connectivity, call destination, and call station connectivity, which is consistent with the NEMA SB-40 standard for communication systems. If the e2445-eACLK’s network connection is lost, targeted e300 eConsoles will report that station as absent and display its dial number.
When the e2445-eACLK is used with call stations, the call-in destinations are monitored. If the device at a call-in destination loses network connectivity, the e2445-eACLK will automatically search for an alternate destination. If no other suitable call-in destinations exist, the call station will audibly and visually indicate an error. If a wiring fault is detected between a Call Station and the e2445-eACLK , the e2445-eACLK will audibly and visually indicate the error. The ePort logs the location, time, date and type of fault. The ePort, eLog, eCI and eAmplifiers can also generate an alarm tone.
The e2445-eACLK is equipped with three relays. One relay can be activated remotely from an eConsole to support an auxiliary function (e.g. door control). The
other two relays are used for emergency notifications, such as a strobe or combination strobe and siren. The strobe and siren relays are automatically activated on an emergency call-in or when receiving an audible or textual emergency message, but the siren is silenced once the speaker is active.
The e2445-eACLK baffle is constructed of cold-rolled steel and is finished in a mar-resistant, white, semi-gloss, epoxy coating. The edges are folded to provide an attractive trim appearance. The unit can be flush mounted using the 2445-BBF Flush Mount Back Box, or surface mounted using the 2445-BBS Surface Mount Back Box.
