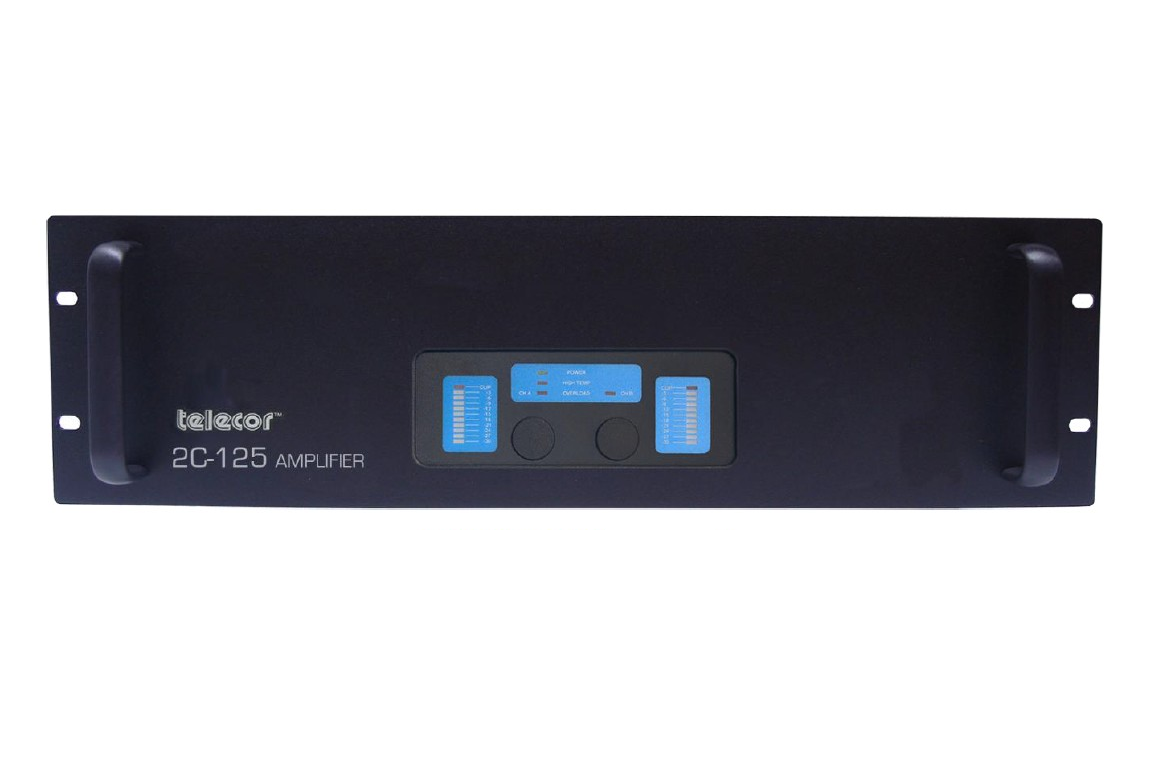

The Telecor 2C-125 Power Amplifier delivers two independent channels of 125 watts of audio power intended to drive industry standard speakers for sound reinforcement and paging systems.
Output terminals are provided for two 4 Ω, 8 Ω, 25 V and 70 V speaker lines. The amplifier contains current limiting circuitry on the output to protect it from overloading. The amplifier also has circuitry to protect it from overheating.
Channel input terminals are located on installable modules. The Analog Module (2C-PA) accepts either a balanced or single-ended input source. A sensitivity Input Level switch is provided to select either the 1 V (0 dB) or 100 mV (-20 dB) input level. The eSeries Input Module (2C-EC) provides an RJ45 jack for connection to an eSeries network.
