Quam System 5 Speaker Specifications
|
|
| Power Handling |
· 12 watts RMS (nominal) measured per EIA Standard RS-426A |
| Sensitivity |
· 96dB SPL measured 1W/1M |
| Calculated Output |
· 103dB SPL, 5W/1M |
| Impedance |
· 8 ohms (nominal) |
| Freq. Response |
· 65Hz-17kHz – EIA 462A Standard |
| Dispersion Angle |
· 100° @ 2kHz octave (-6dB) |
| Magnet Weight |
· 4.8oz. nominal |
| Magnet Material |
· BeFe ceramic |
| Dimensions |
· 23-3/4” x 11-3/4” x 3-13/16” |
| Baffle |
· Perforated Steel with white epoxy finish |
| Country of Manufacture |
· U.S.A. |
Description

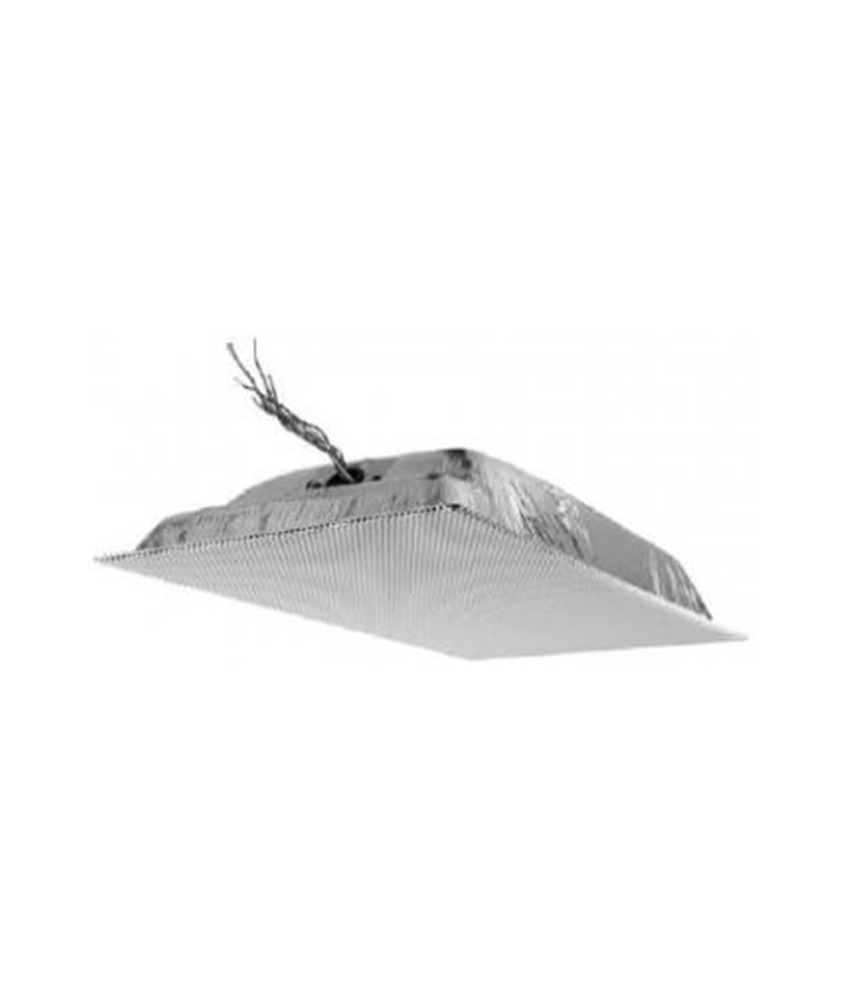

Quam System 5 Series Suspended Ceiling Speaker
The Quam System 5 loudspeaker system is an American-Made loudspeaker assembly including an 8” speaker with factory-installed transformer; 12”x24” perforated steel baffle and integral back box. The System 5 was designed to mount unobtrusively within a 24” wide suspended ceiling tile grid, while meeting the needs of a broad range of interior paging or commercial background music reproduction systems.
Optional Rotary-Select Tap models are available (Quam System5/25RS and System5/70RS) which allow the installer or end-user to adjust the audio output via an adjustable knob without need to disconnect and re-wire the speaker.
The System 5 Lay-in ceiling speaker system is City of Chicago Approved for installation within plenum ceilings. All models are available in a white or black baked epoxy hybrid finish.
