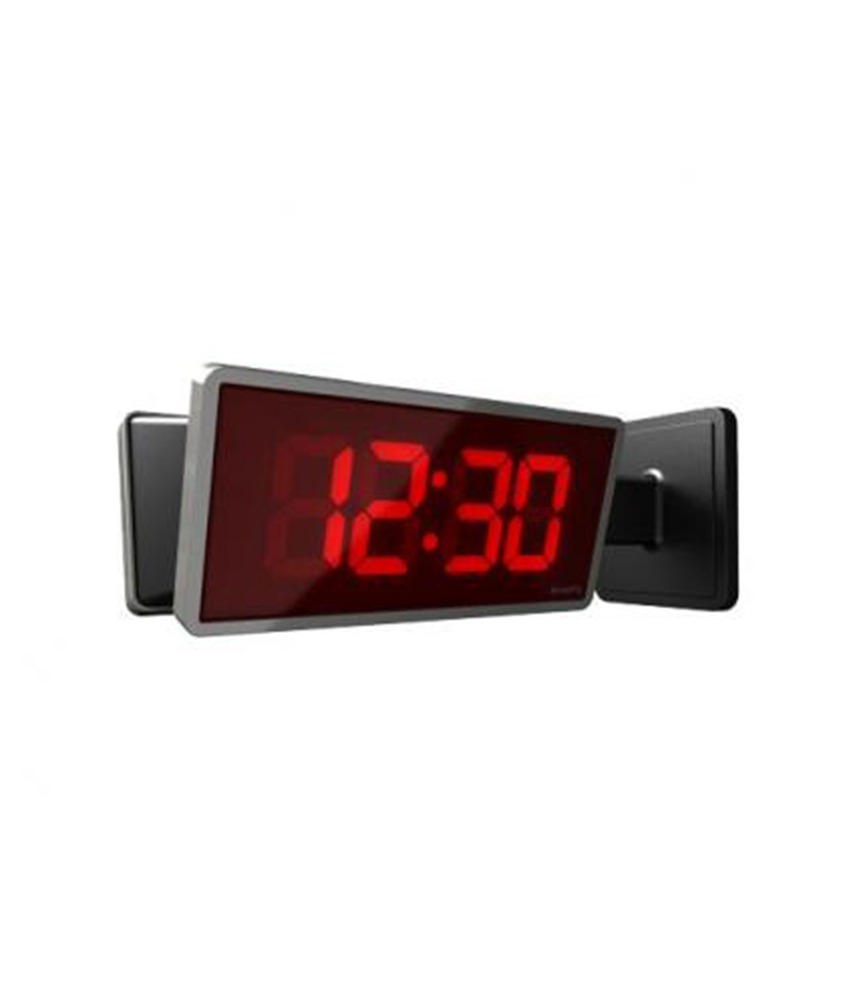

The Sapling SBD 3000 Series digital clock is available with a 2.5” or 4.0” high efficiency LED numeric display. The clock is available in three models (3100, 3200, and 3300) with additional capabilities for higher models. A red display is standard with white, green and amber displays optional. Displays can be set to 12-hour or 24-hour formats. The SBD 3000 Series features immediate correction for time change when used with 2-wire digital communication or RS485 input. The SBD 3000 has three (3) levels of adjustable brightness.
The clock includes messaging capabilities for “BELL” and “FirE”. The SBD 3000 Series employs the ability to alternate between the current time and date. If the communication input to the clock is lost, the colon on the display will flash to alert that there is a problem. The clock can be installed flush, surface or double mount. The clock bezel finish is available in anti–glare with a smooth surface. No external screws are visible on the bezel or clock housing. The SBD 3000 Series is UL, cUL and FCC compliant.
Additional 3200 Model Highlights
- Capable of Interfacing with Sapling's Elapsed Timer Control Panel
- Capable of Interfacing with Sapling's Temperature Sensor
- Can Receive Sapling RS485 Time Protocol
- Brightness Scheduling Capabilities
Additional 3300 Model Highlights
- Easy Programming via 2-Front Push Buttons
- Capable of Interfacing with Third-Party Systems via Contact Closure
- Can Interface with 3-Wire Sync Time Protocol
- Supports 58-Minute, 59-Minute, National Time and Rauland Sync Wire Inputs
- Supports Once-a-Day Contact Closure Sync
