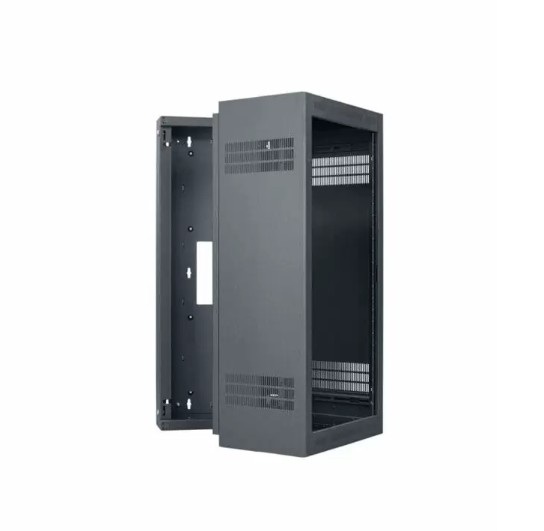

The Lowell LWR-Series heavy-duty sectional wall rack features a front mounting section that swings open from its backbox, allowing easy access to cables and equipment. The welded 16-gauge steel rack features fully-gusseted corners and a triple-formed wrap design that mounts to the backbox with positive-locking, spring-loaded L-pins. A roller closure keeps the front closed without mandatory locking. A front door is optional and ordered separately.
- Backbox: 5.80 in. deep with keyhole mounting slots on 16 in. centers, center opening to mount over electrical pull boxes, grounding stud, embossed dimples on back plane for installation of board-mounted accessories, laser-cut knockout panels on top/bottom, and two keyed side locks.
- Front Mounting Section: Fully-gusseted corners, triple-formed wrap design mounts to backbox from inside with two heavy-duty spring-loaded L-pins (self-seating, positive-locking).
- Welded sides with vents
- Beveled front corners
- Knockouts for wireless antennas
- One-pair adjustable mounting rails tapped 10-32, printed RU scale
- Integral top/bottom rails on EIA spacing for mounting or lacing
- Black-textured powder-coat finish
- Pilot point screws with captive washers
- Draw latch to pull mounting section and backbox together
-
Grounding stud
