Telecor IC-1 Specifications
| Weight |
· 9 oz (253 g) |
| Finish |
· Brushed Stainless Steel |
| Terminations |
· IDC @ .156” Centers |
| Wiring Required |
· 2-pair, AWG 22 (one pair twisted, shielded) |
| Speaker |
· 2” Permanent Magnet |
| Transformer |
· 25V, 0.5 Watt |
| Switch |
· 1-Position Momentary Action, Pushbutton Contact-Type |
| Dimensions |
· 4.5”H x 4.5” W x 1.5”D |
| Backbox Required |
· 2-Gang, 2”D w/ 9/32 Mounting Centers |
Description

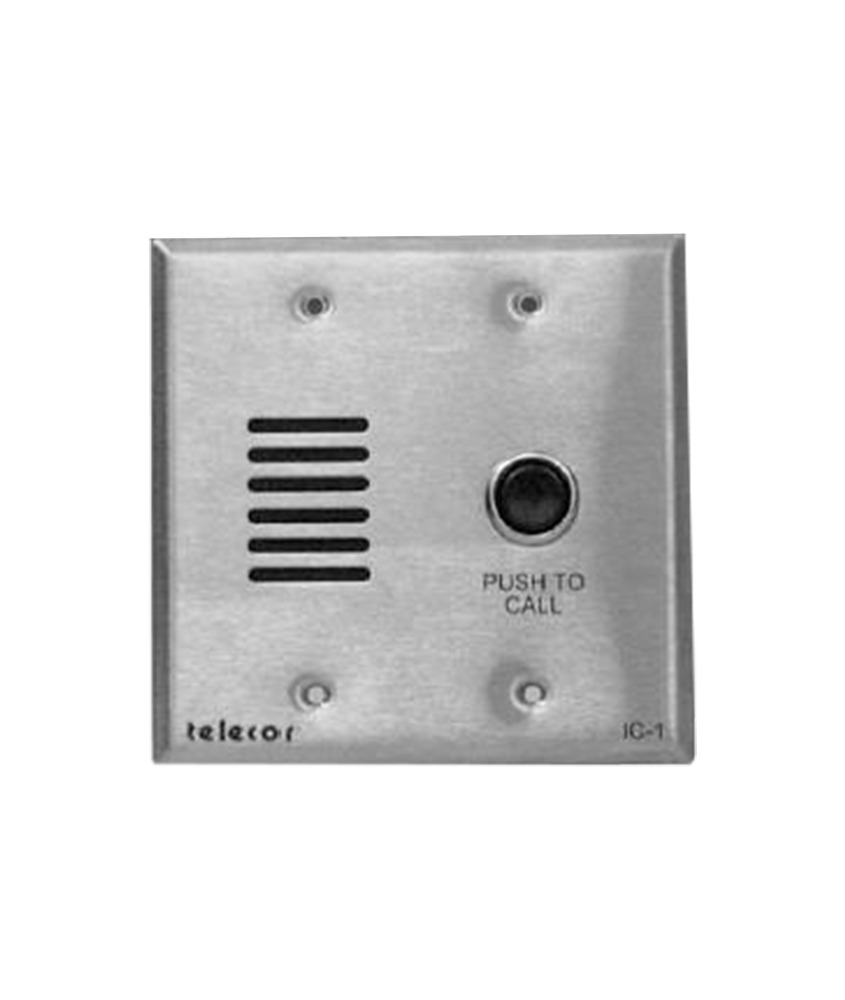

Telecor IC-1 Call Station
The Telecor IC-1 Intercom Station is designed for use with Telecor Communication Systems, but is compatible with any 25v intercom system which uses contact-closure to initiate a call-in.
The station is equipped with a momentary action, pushbutton switch for initiating call-ins and is inscribed with the letters “Push to Call” on the stainless steel faceplate.
The IC-1 call station also includes a 2″ permanent-magnet loudspeaker and 25 Volt audio distribution transformer. The unit mounts on a standard 2-gang electrical box, either flush or surface mount.
