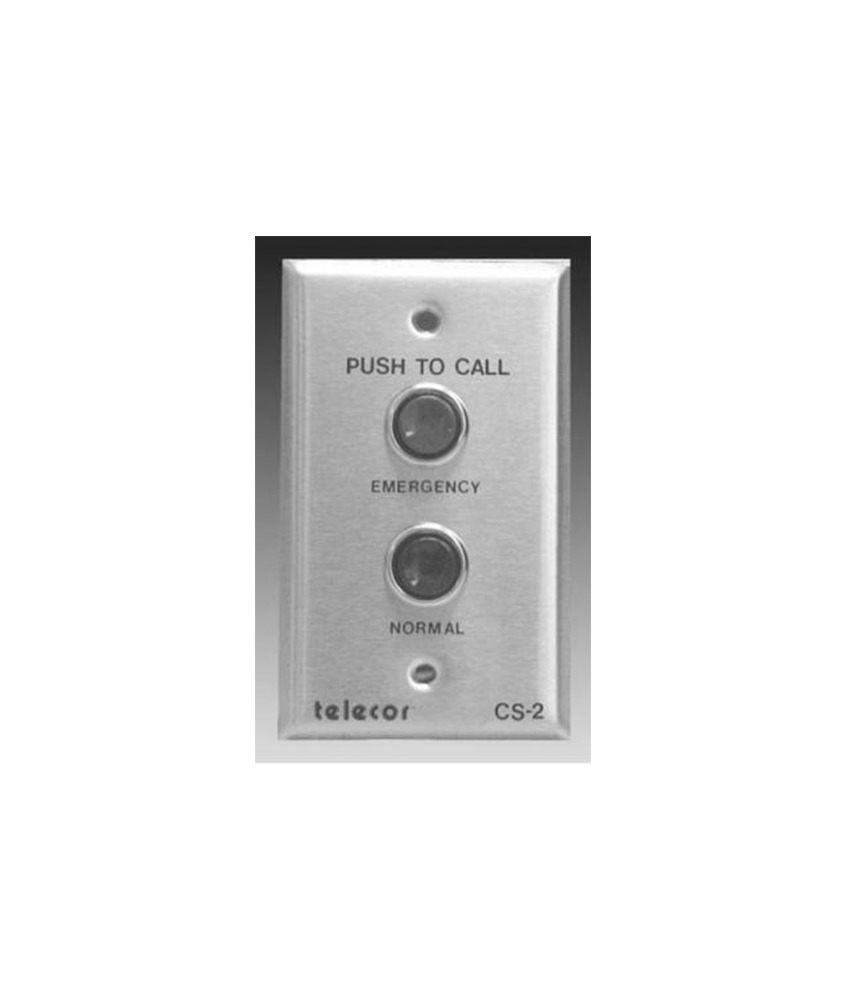

The CS-2 Call Switch features a black “Normal” call button and a separate red “Emergency” call button on a stainless steel faceplate.
CS-2 SPECIFICATIONS
| Controls: | Separate Normal & Emergency Push Buttons |
| Button Colors: | Black (Normal)
Red (Emergency) |
| Action: | Momentary Contact Push-Button type |
| Dimensions: | Mounting Plate 4.5”H x 2.75”W
Mounting Centers: 3-9/32” (standard single-gang) |
| Depth Required: | 1” (25.4mm) |
| Finish: | Brushed Stainless Steel |
| Weight | 0.13 lbs (0.059kg) |
The Telecor CS-2 Call Station is designed for use with Telecor Administrative Communication Systems or other systems that can accept a 2-button input. The station is equipped with a pair of momentary action, push-button switches. The bottom button is for initiating normal calls to the Administrative Console. The top button is for initiating emergency calls.
The button color of the Normal call switch is black and the Emergency call switch is red. The unit is inscribed with the words “Push to Call” on the stainless steel faceplate and each of the pushbutton switches are identified with the inscription “Normal” and “Emergency”.
The CS-2 Call Station mounts onto a standard 1-gang electrical box, with 3 – 9 /32” mounting centers.
