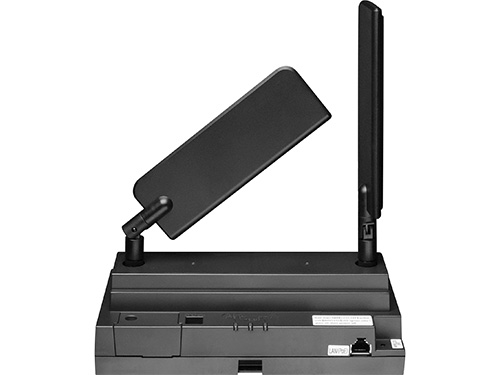

IXG Cloud Gateway Adaptor with Sim Card
The IXGW-TGW is required for remote management of Aiphone IX | IXG Series systems, additionally serving as the cellular gateway and mobile app solution that enables tenants to speak with visitors and release doors from anywhere.
One gateway is required per remote managed system, while non-remote management applications support up to 99 gateways per system.
If activated, the optional SIM card provides an LTE connection that can serve as the primary network connection or as a backup failsafe, and supports a single phone number per tenant. The IXG mobile app is compatible with iOS® and Android® devices, with up to eight apps registerable per tenant station.
Features
- PoE (IEEE 802.3af class 0)
- DIN rail mountable
- Eight simultaneous calls per adaptor
- Supports up to 9,999 IXG mobile apps
- Optional 4G LTE data connection
- Allows telephone calls from door and entrance stations
Specs
Power Source
PoE
Consumption
2.8W standby, 5.8W max
LAN
Ethernet (10BASE-T, 100BASE-TX)
Wireless Network
LTE, WCDMA
Included SIM card
AT&T™ nano SIM
Packet delivery
Unicast, Multicast
Protocol
IPv4/v6, TCP, UDP, SIP, HTTPS, RTP, RTCP, SRTP, SRTCP, IGMP, MLD, SFTP, DHCP, NTP, DNS, MQTT, ICE, DTLS, SDP
Channel
Intercom: 8 Phone: 1
Encryption
TLS 1.2, IEEE802.1X
Operating Temp
14° ~ 122°F (-10° ~ 50°C)
Dimensions (main)
4-1/4" H x 8-1/4" W x 2-3/8" D
108.5 mm H 210 mm W 61 mm D
Antenna Length
5-9/16"
141.3 mm
